Restoring my fathers old hunting Jeep

[JohnL48]

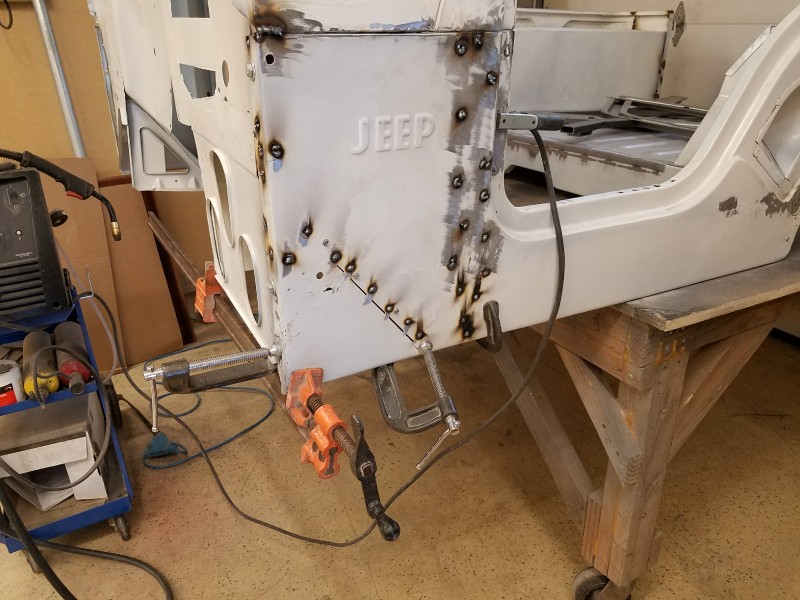

Started tacking on the cowl. Can't wait to get this on a rotisserie, floors first tho



[JohnL48]

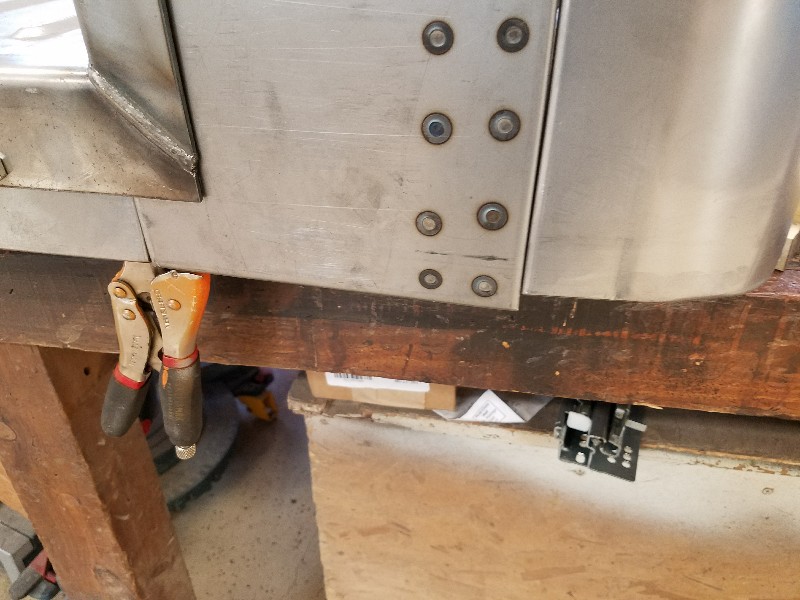

All my woodworking clamps are coming in handy



[JohnL48]

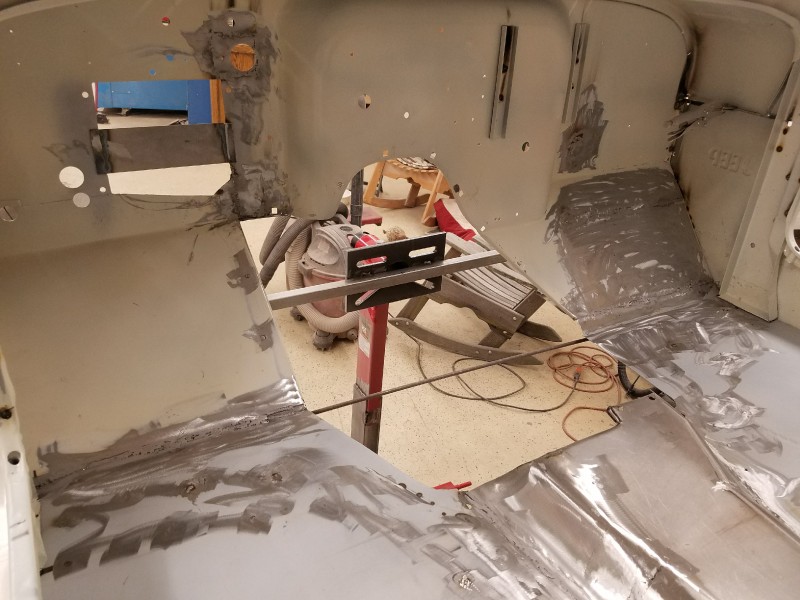

Floors today



[JohnL48]

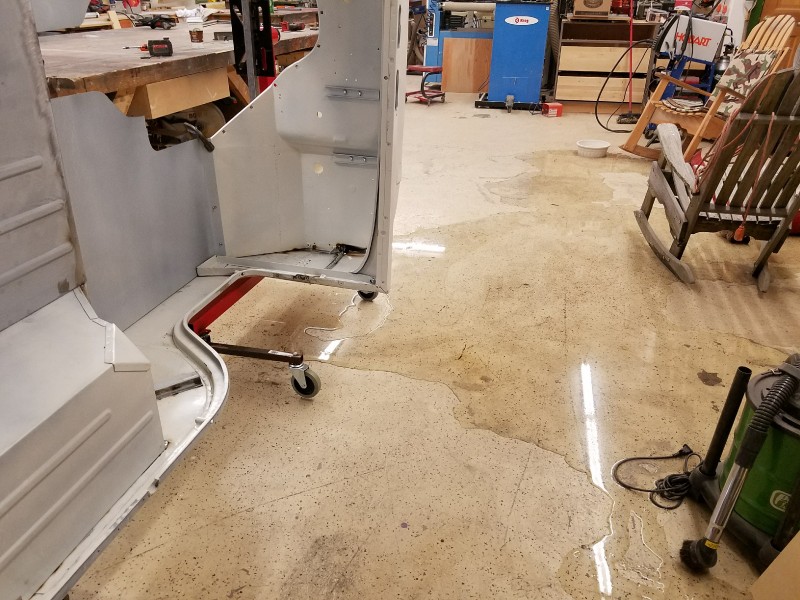

What I walked into today due to an ice dam in my driveway, probably not a good idea to weld while standing in this. I need to move to someplace warm



[JohnL48]

New

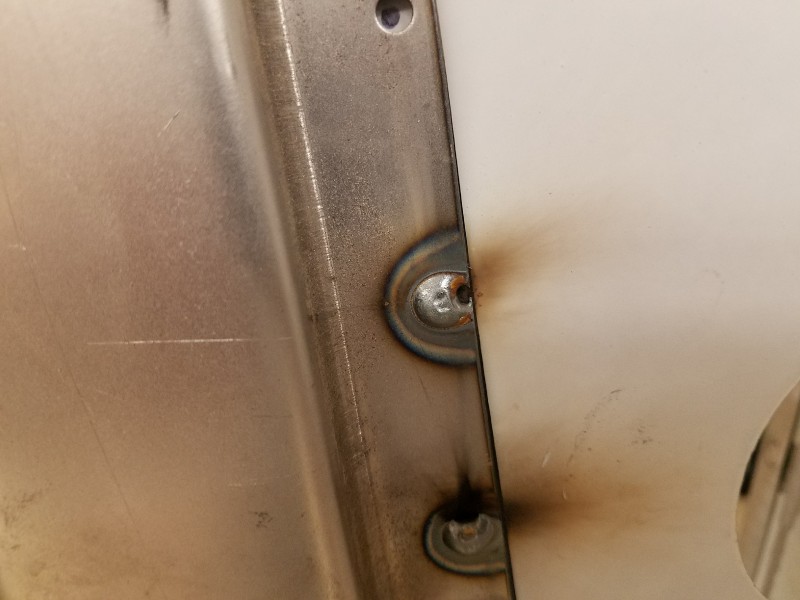

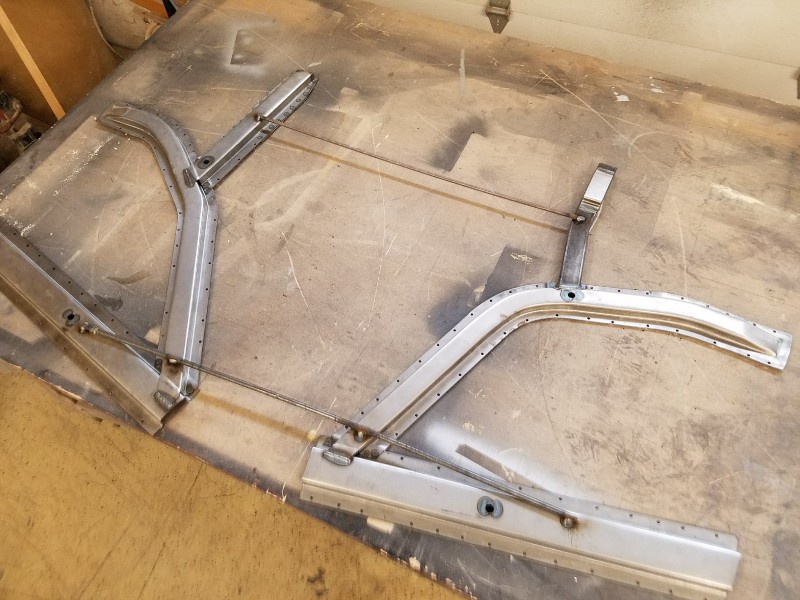

I bolted the floor supports right to the frame then tack welded a couple rods to hold it in place

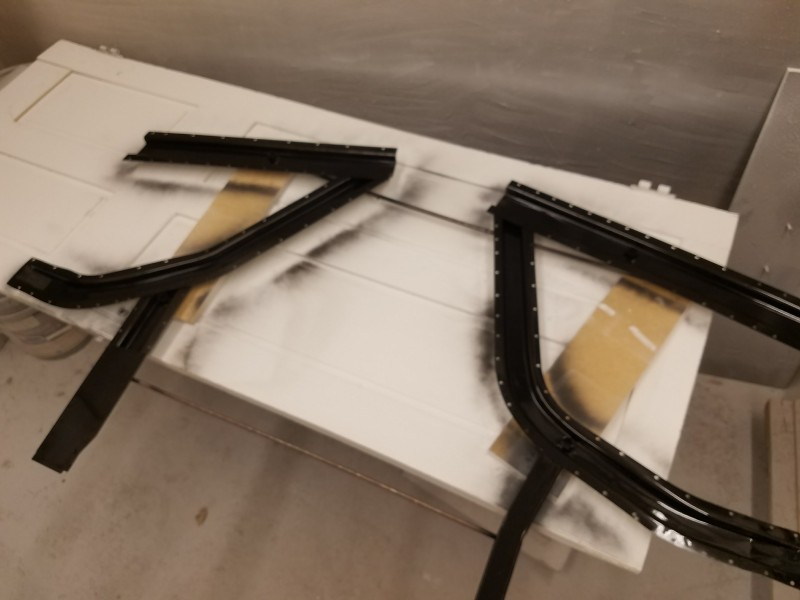

Painted the inside with por-15 DTM paint

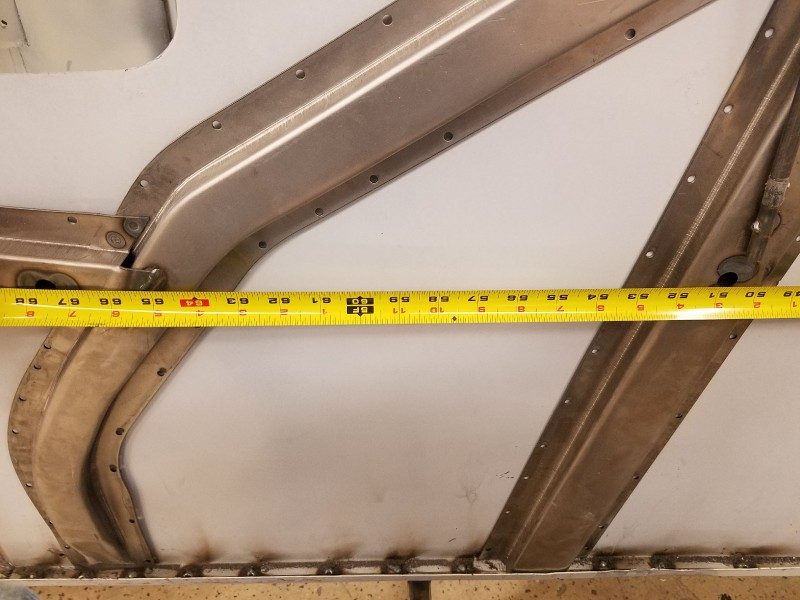

I measured from the rear riser (bumper) 51" and 67 1/2" to the center of the holes on the frame. Then since the tub is even with the riser i just transferred those measurements

In my next life im going to put one of these tubs together with panel adhesive, just because



[cutman]

When you are finished with this project you should go on a well deserved victory lap around the country. Forum members all over can host you. Very impressive work.



[JohnL48]

When you are finished with this project you should go on a well deserved victory lap around the country. Forum members all over can host you. Very impressive work.

I just want to drive it up to my cabin and hop on my Kubota



[JohnL48]

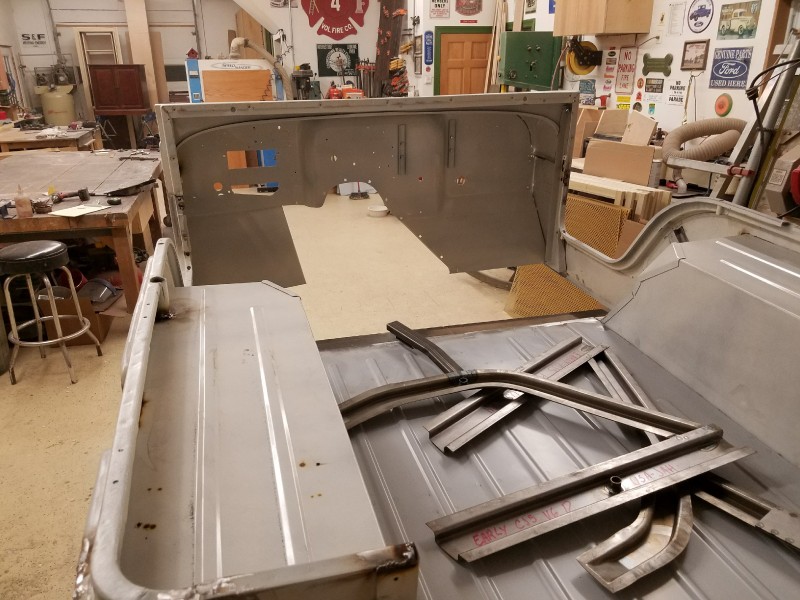

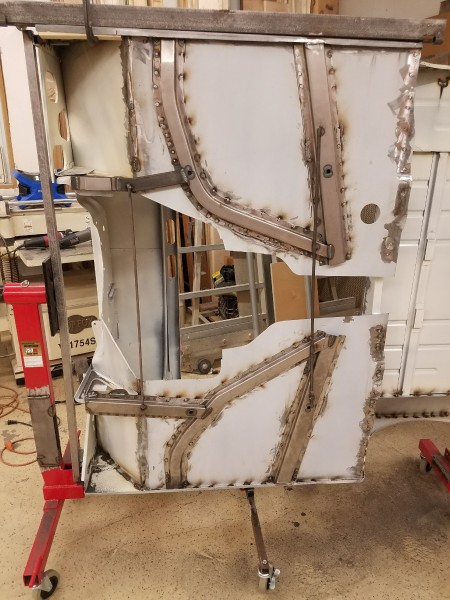

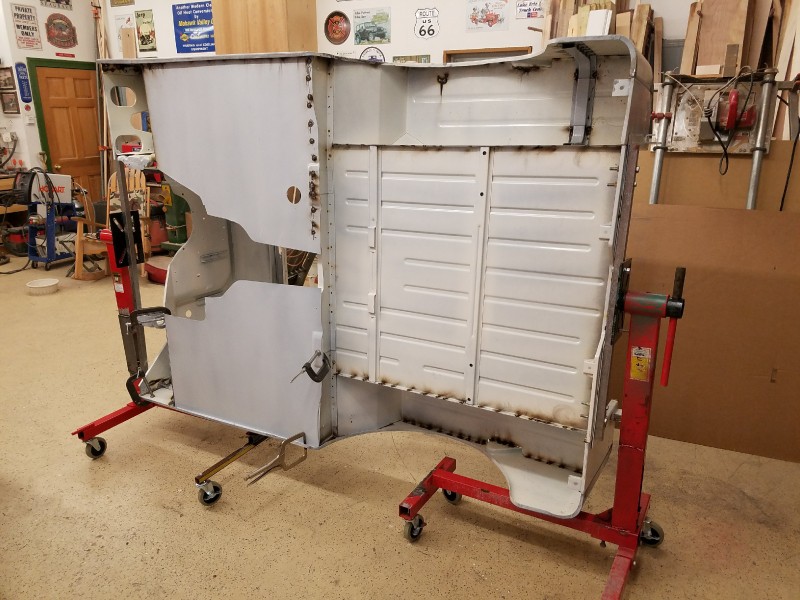

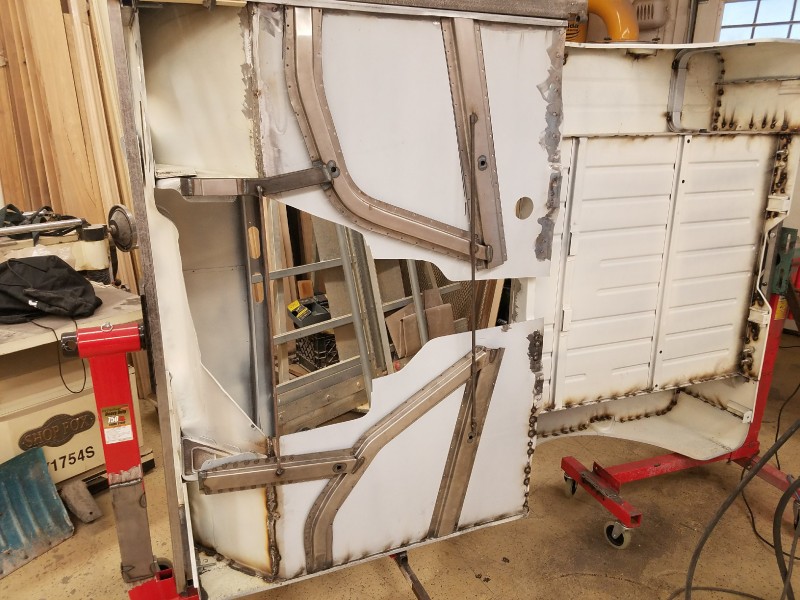

Floor supports are in, tomorrow the spare tire reinforcements and start working to fit the transmission tunnel



[JohnL48]

Had a photo made and hung in the shop for some inspiration

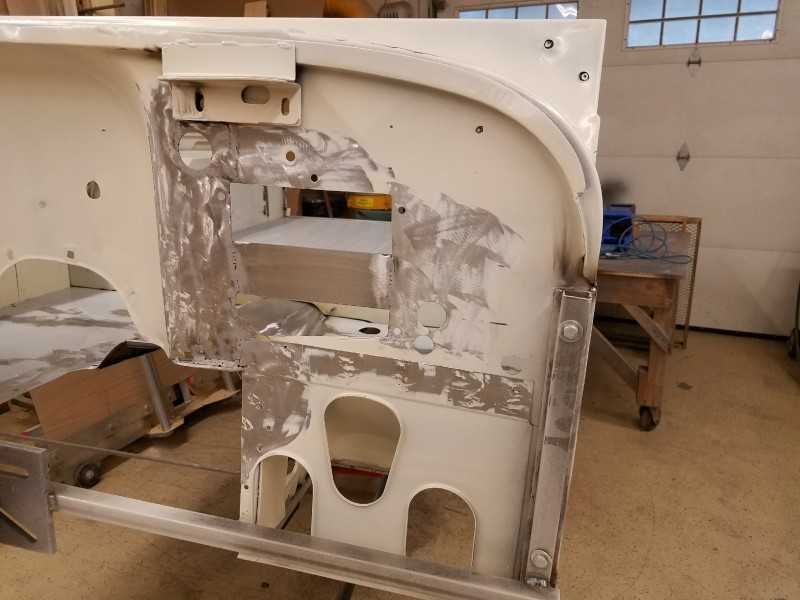

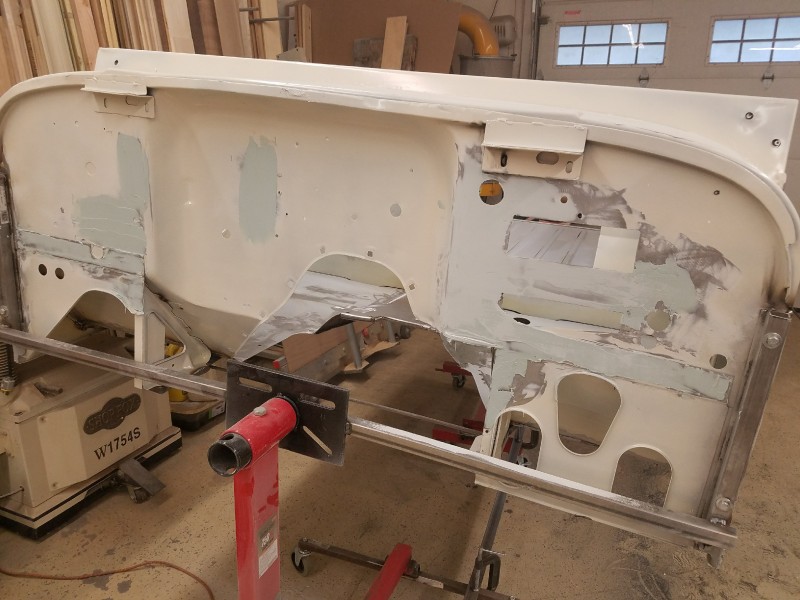

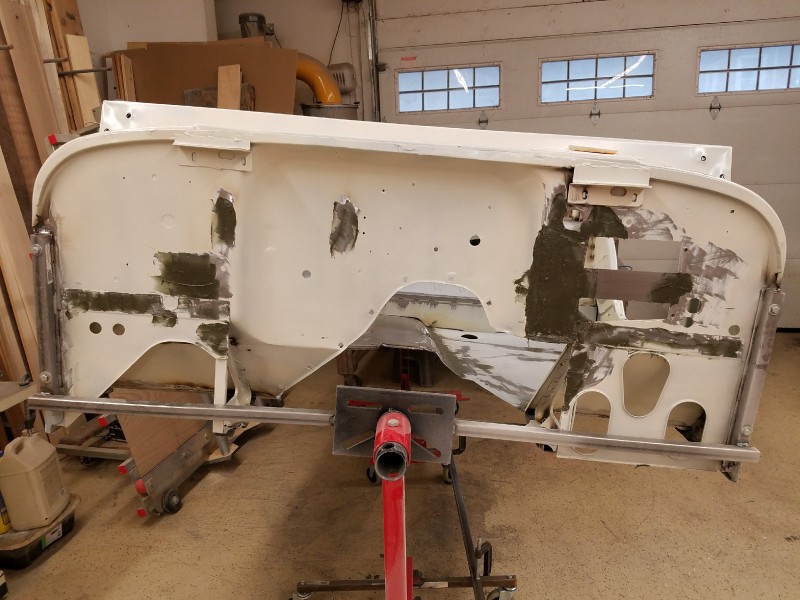

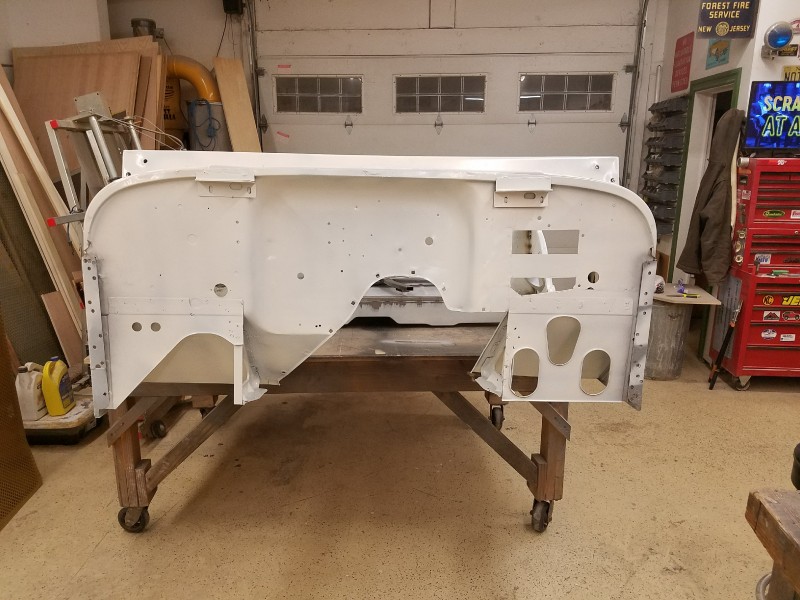

Focused today on plugging the unwanted holes in the firewall.

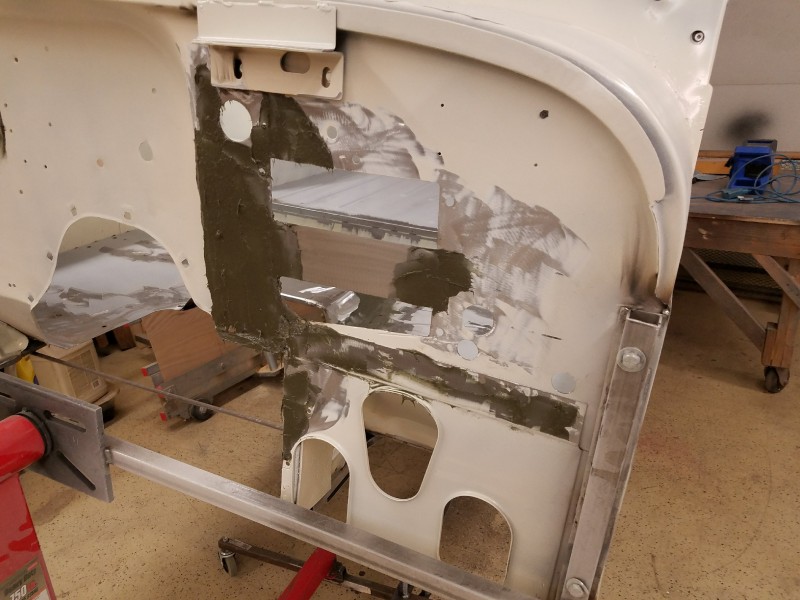

I am sooo tired of welding and grinding so I laid down some fiberglass today



[JohnL48]

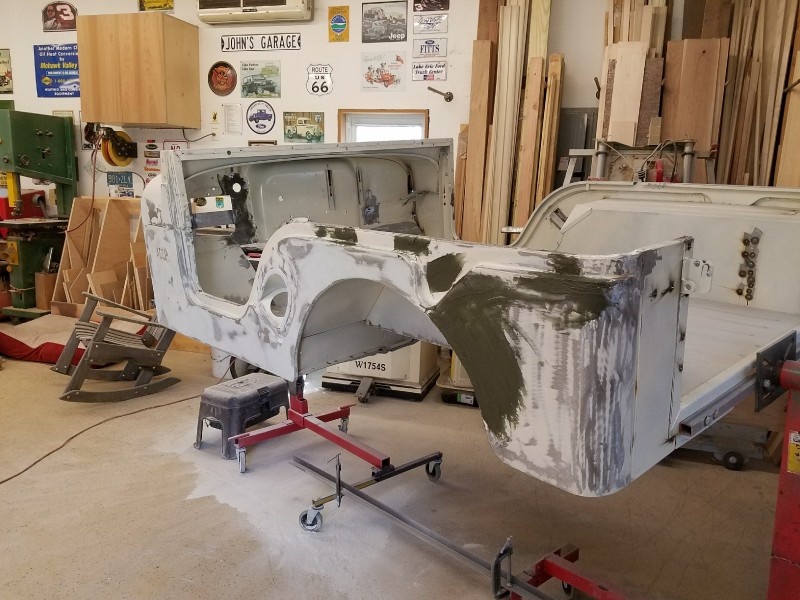

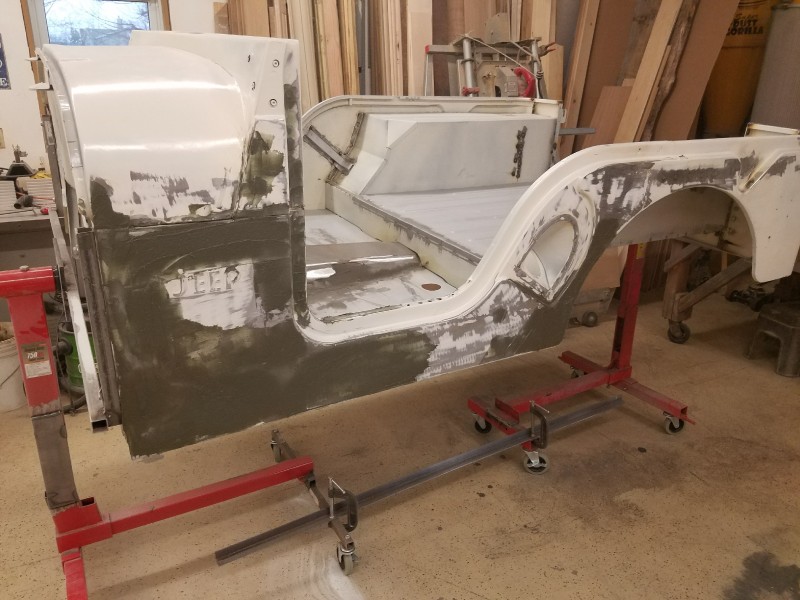

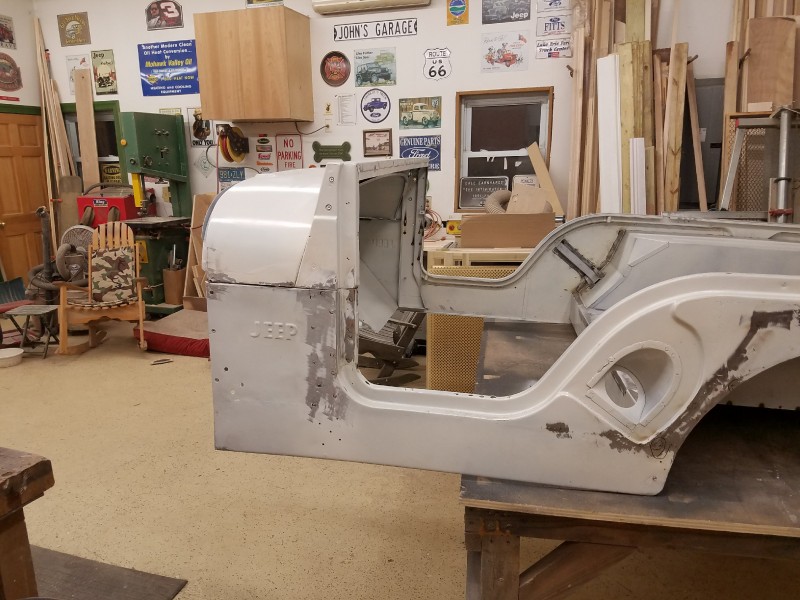

Just going to start going around 1 corner at a time, fixing welds, bondo glass then bondo



[JohnL48]

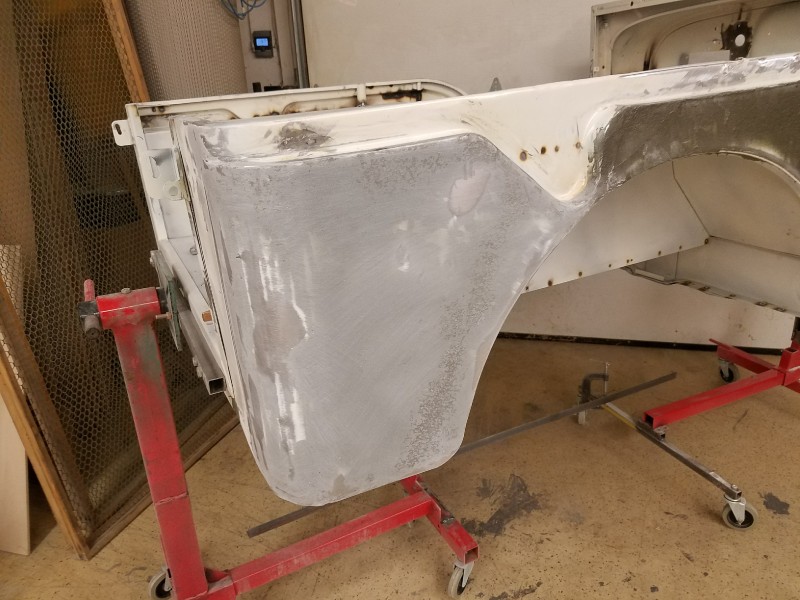

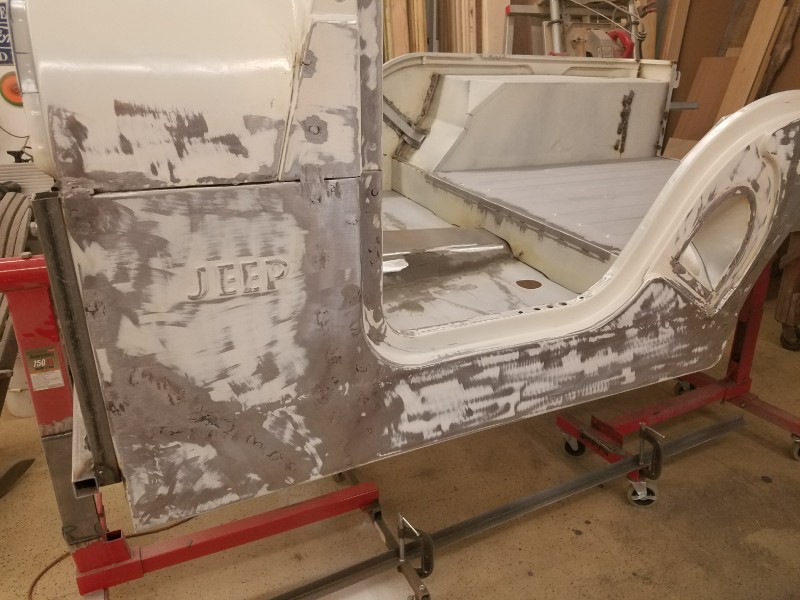

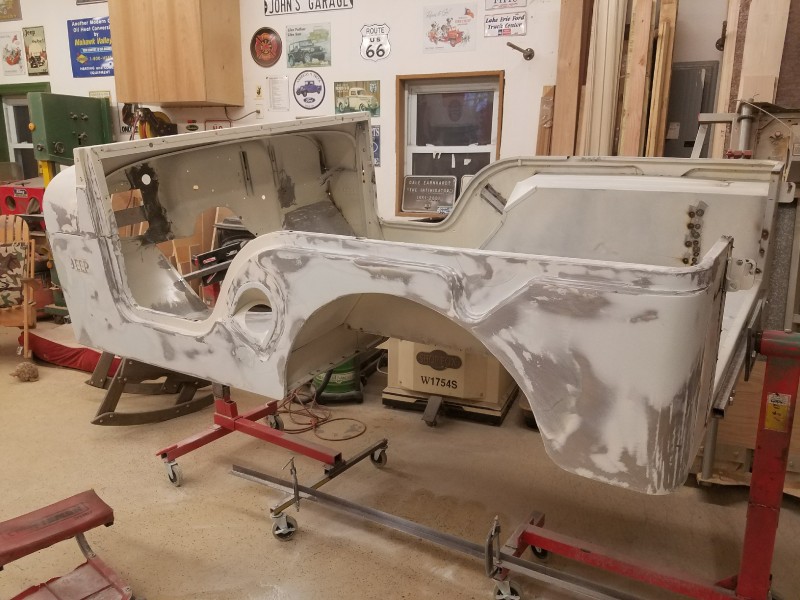

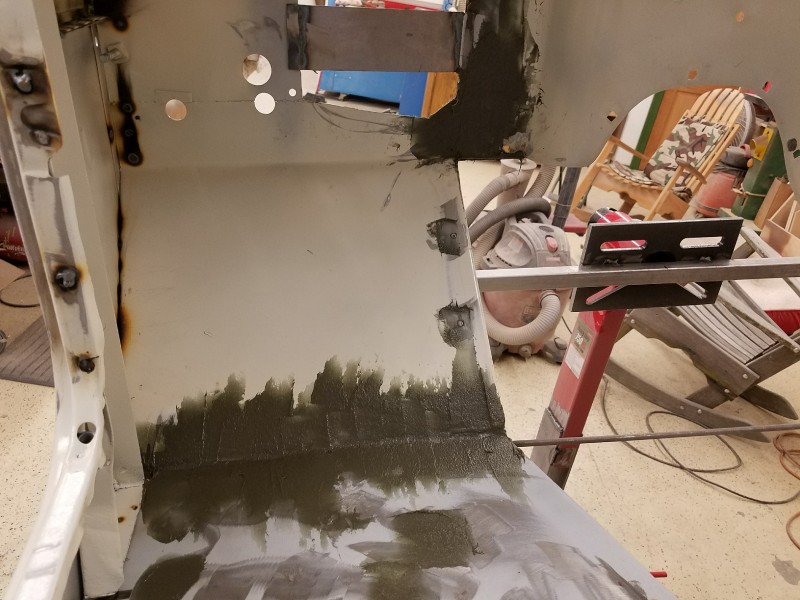

Some progress today, using bondo glass for the rough spots then plain filler to clean it up



[JohnL48]

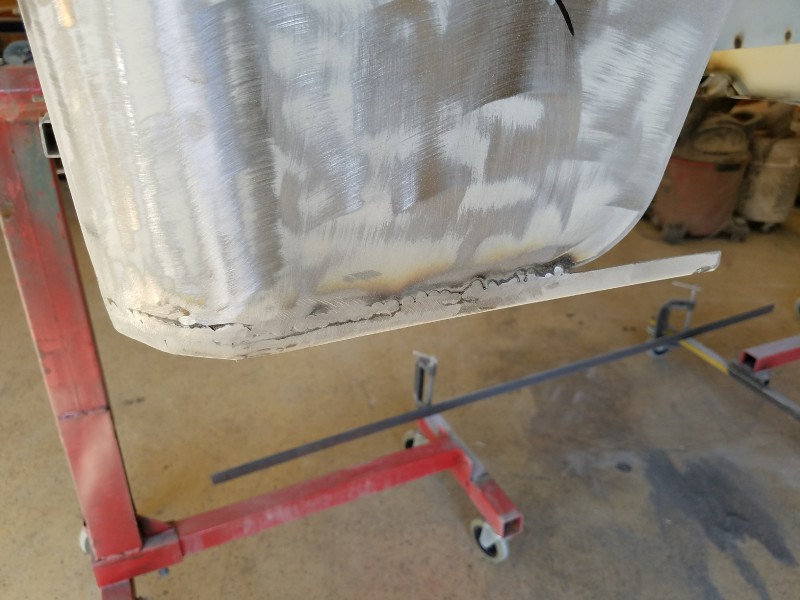

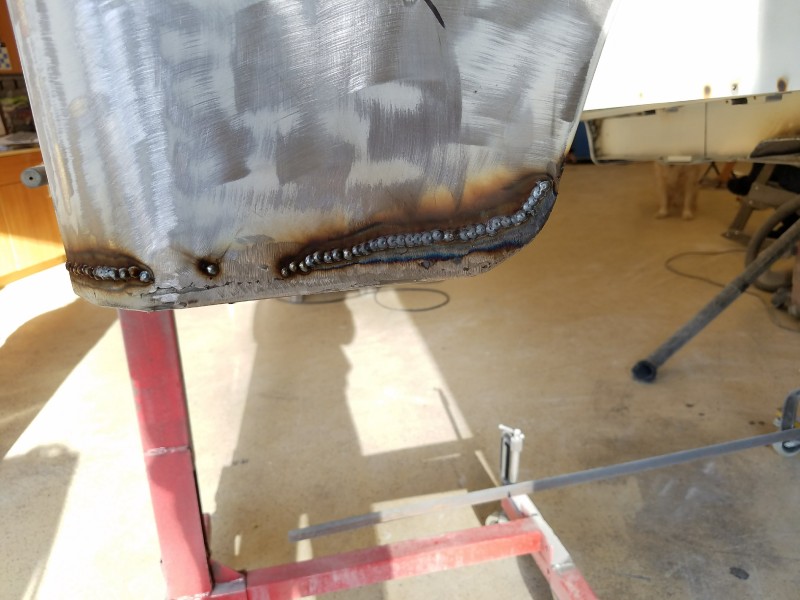

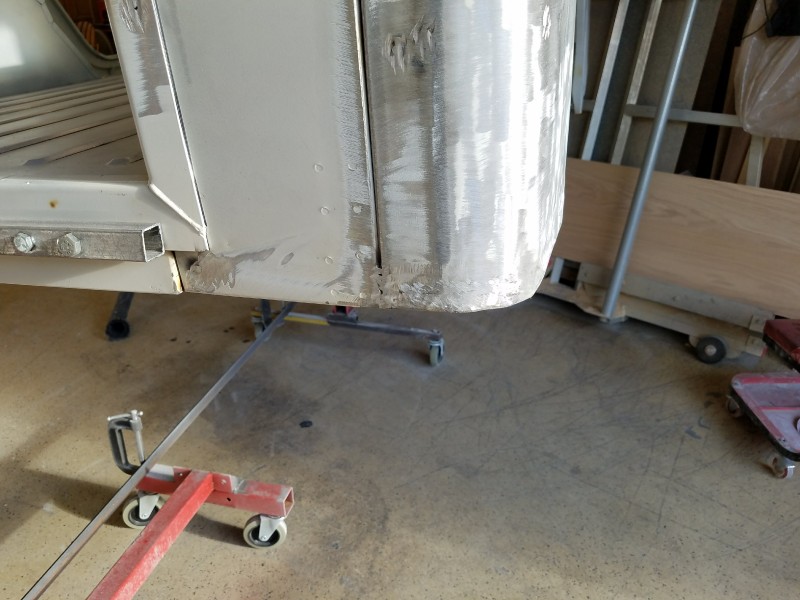

How I fixed the after market tail light panel being shorter than side panel

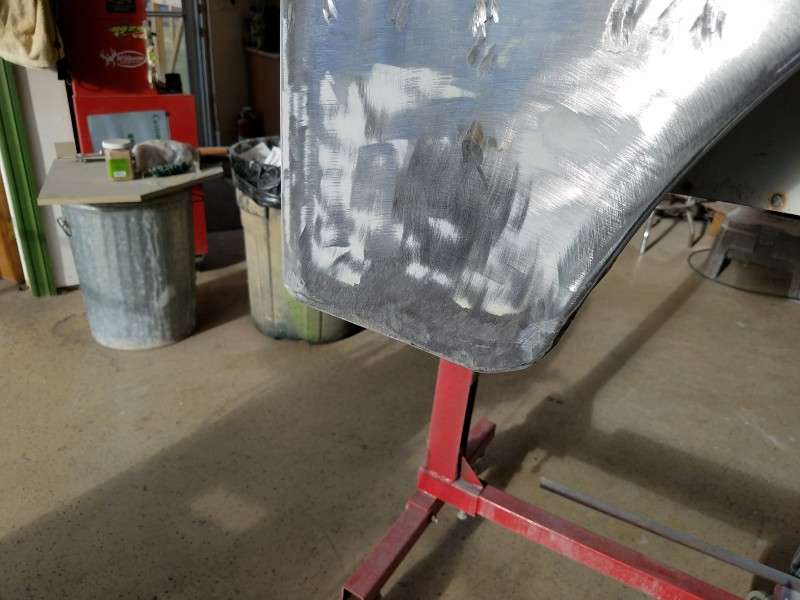

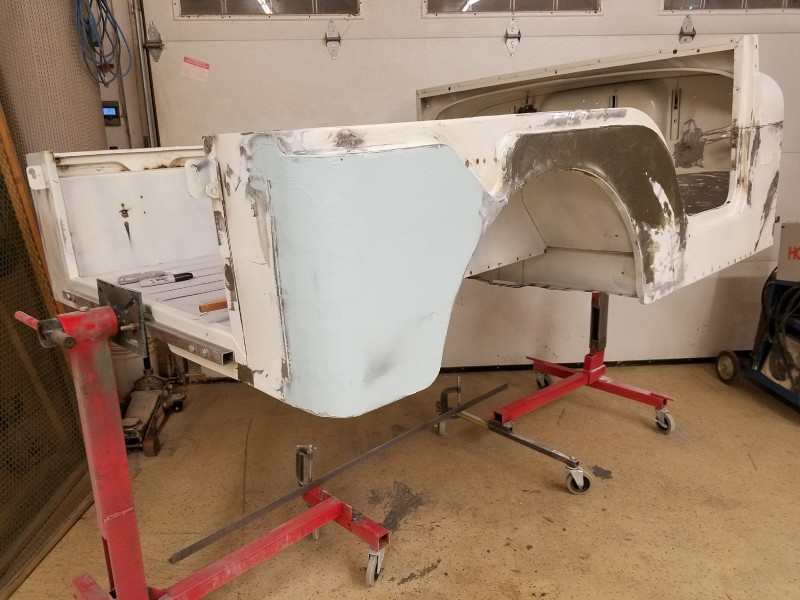

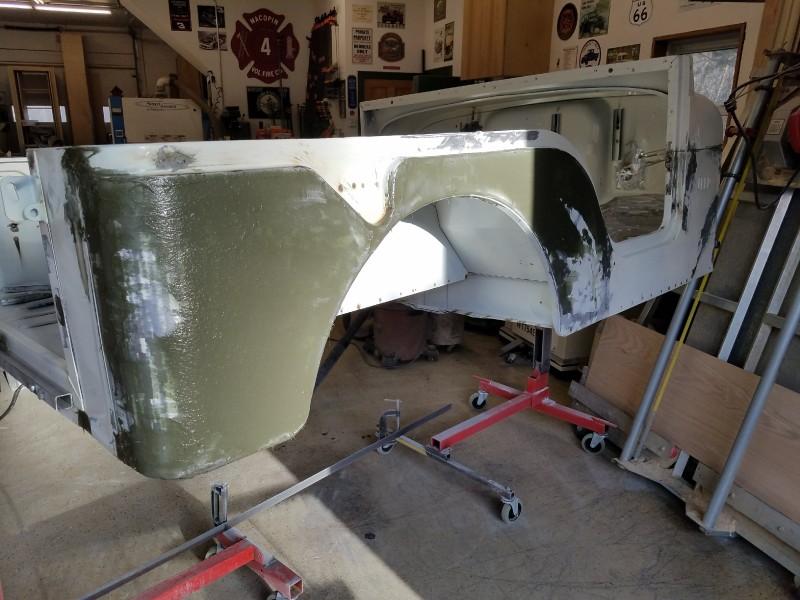

The side panel was a bit wavy probably from all the welding so out with the fiberglass......what a pain to sand



[Turkey Creek]

The number of hours you have into this project must be staggering.



[JohnL48]

The number of hours you have into this project must be staggering.

Yeah, it actually relaxes me lol



[farmhunter]

looking great - I give you all kinds of credit - not something most of us could do even if we had the where-with-all and time. Enjoying the progress pics!!



[JohnL48]

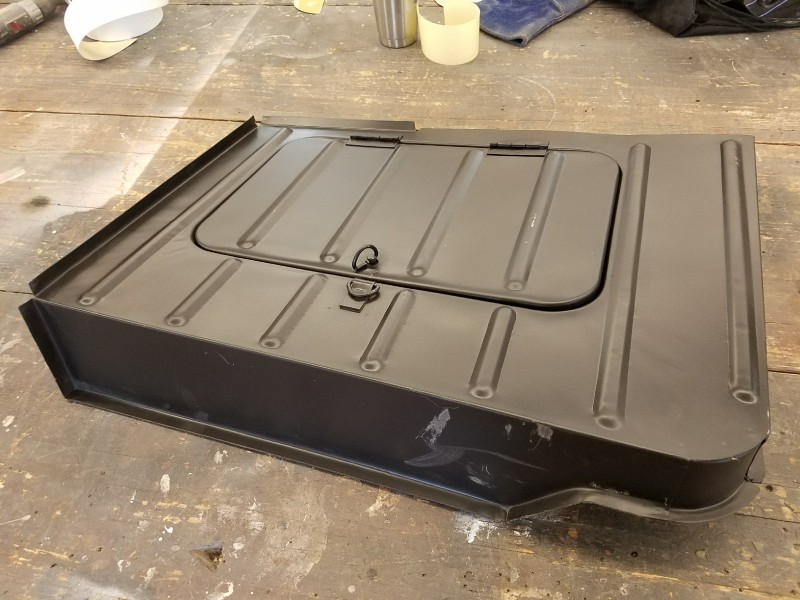

I decided on an aftermarket tool box, fitment wasn't too bad

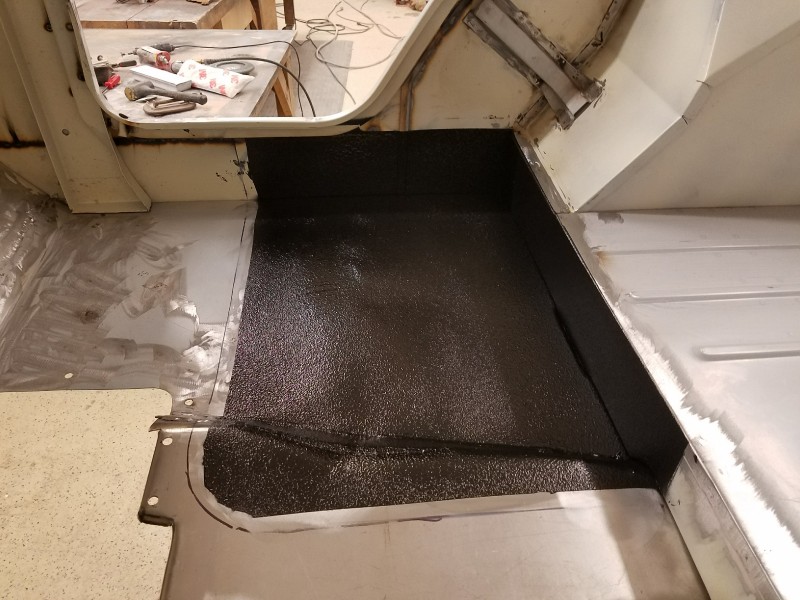

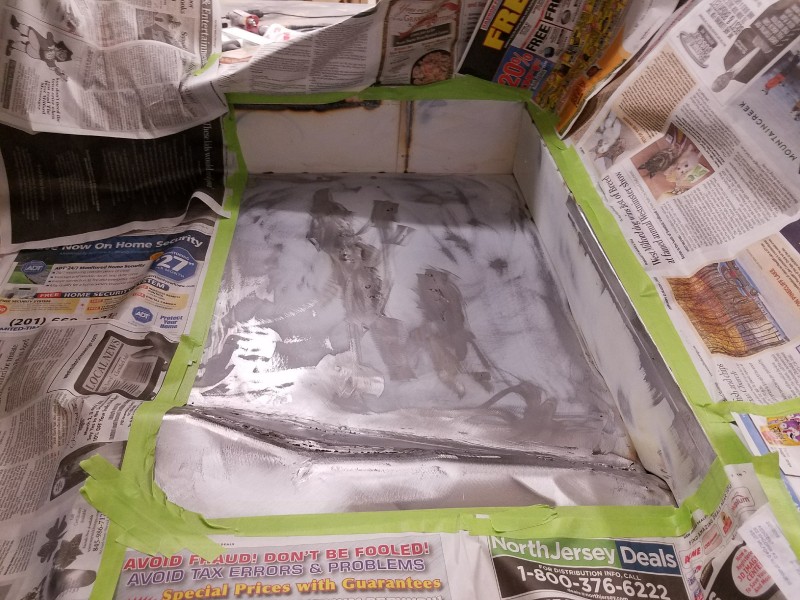

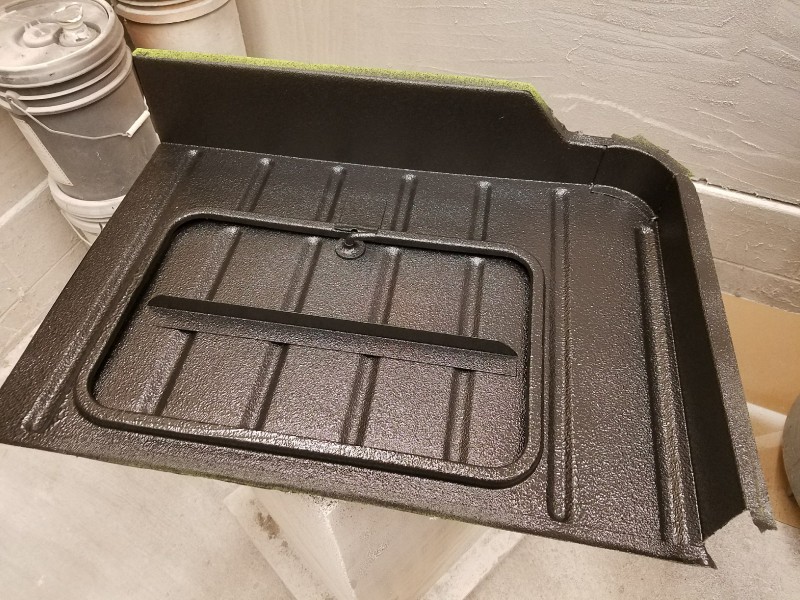

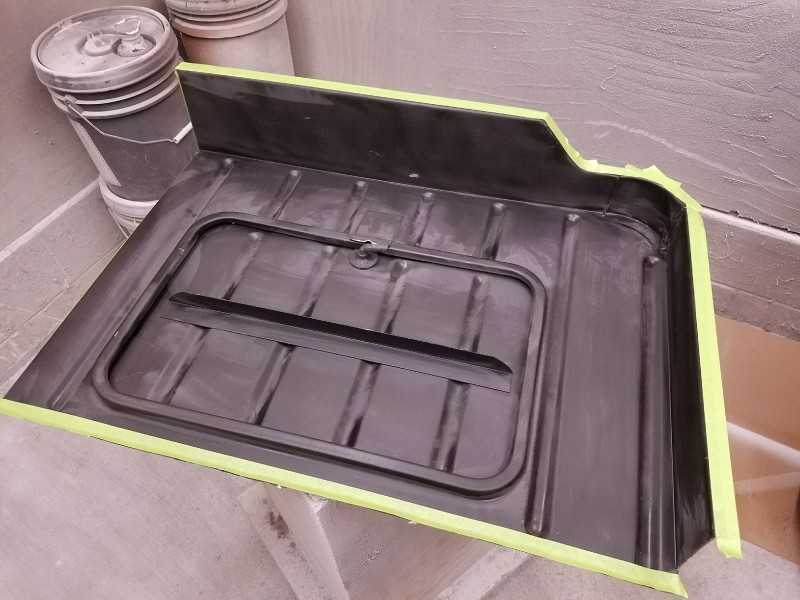

I was going to pre paint inside the tool box area but remembered I had a quart of raptor bed liner left from the last project, so I taped off the flange areas for welding and sprayed that on. Not factory but I figured with the jack and some chains bouncing around in there it would hold up better.



[JohnL48]

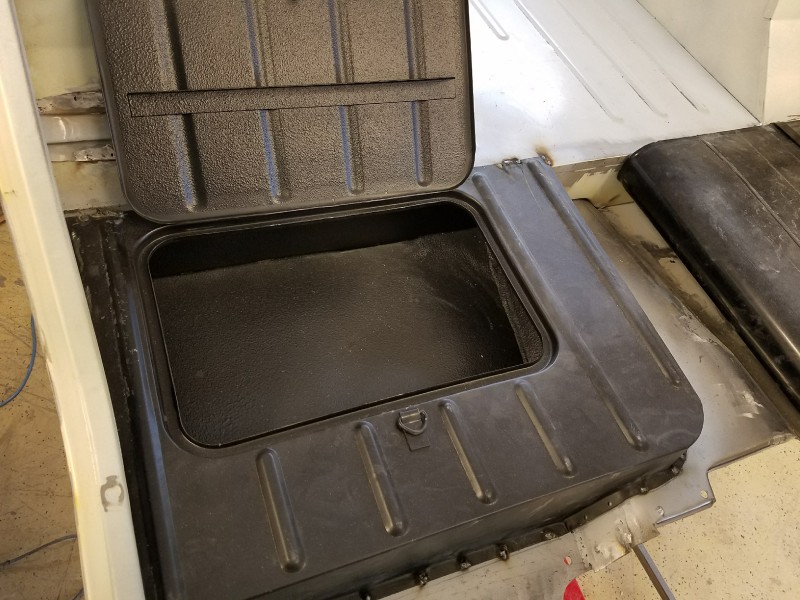

I got the tool box welded in

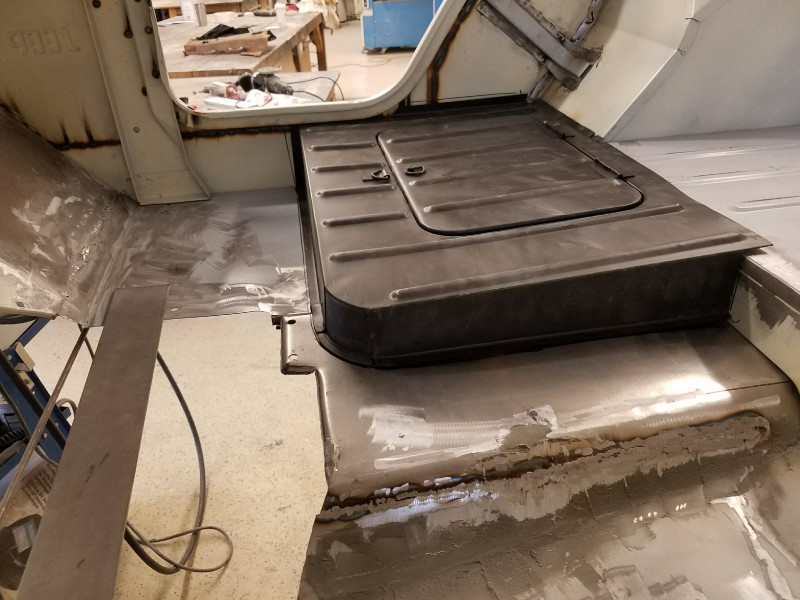

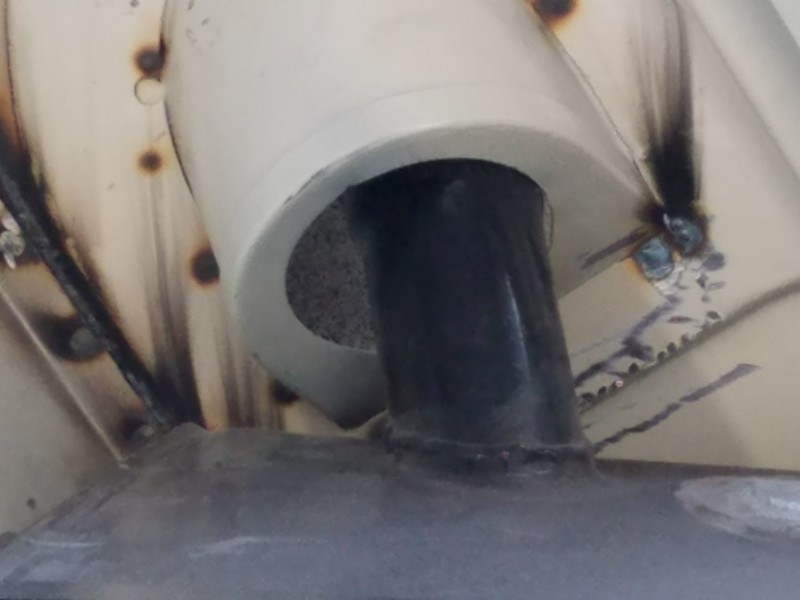

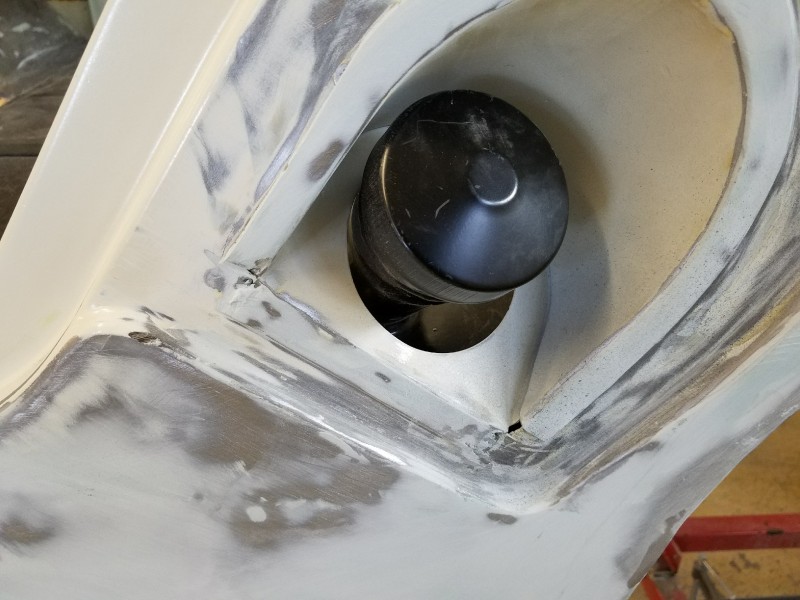

Also put the gas tank in for fitment. I forgot how little leg room these things have

I need to correct this somehow. The rubber grommet will never fit



[Scott Alaniz]

That's some serious dedication and skill. Great job and thanks for sharing!



[JohnL48]

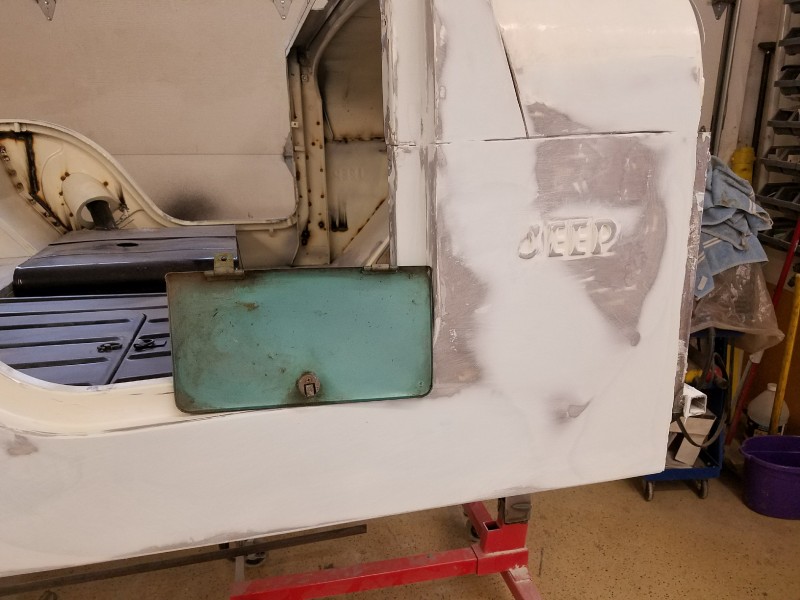

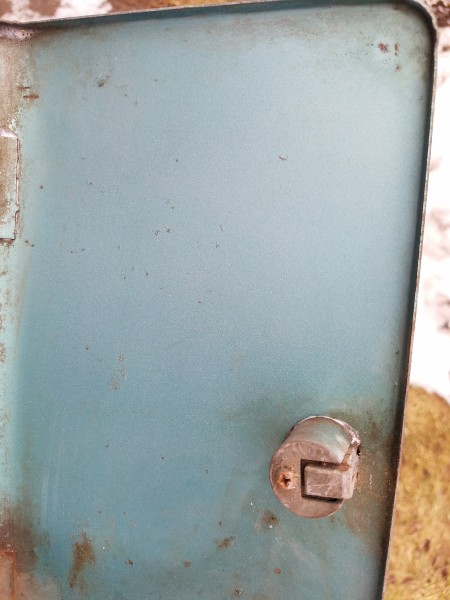

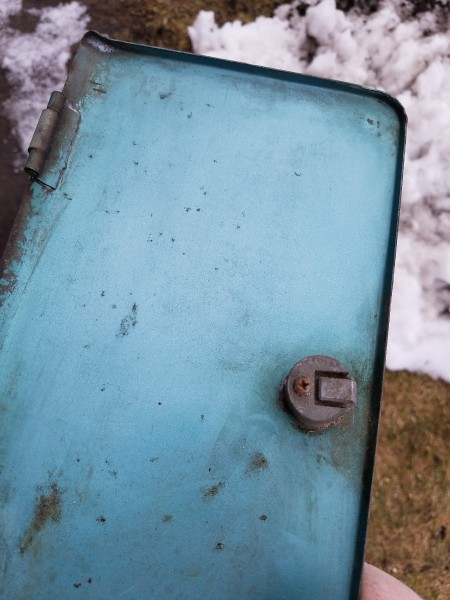

Cleaned up the back of the glove box lid. This is 51 year old empire blue

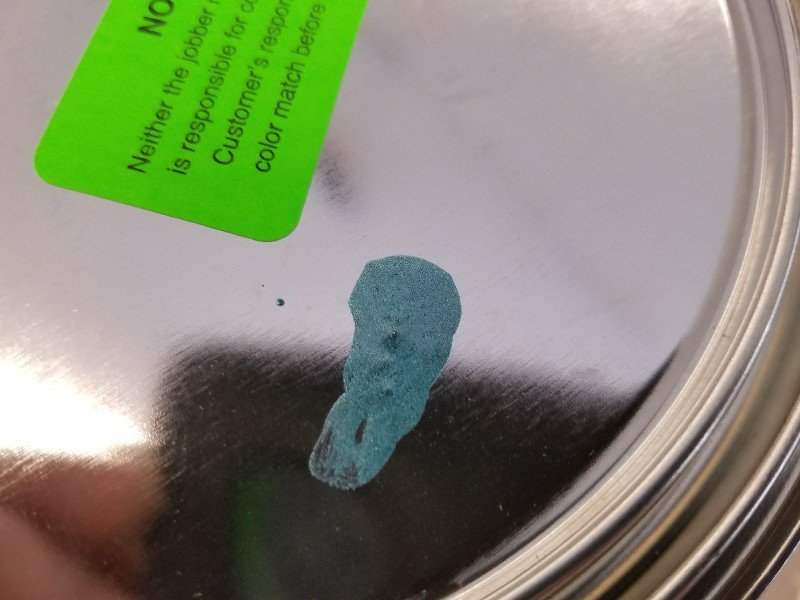

Looks like spruce tip green when I bring it indoors



[JohnL48]

500.00 later almost ready for Empire blue paint
